| 8缸船用主機 Marine main engine | |||||||
| 項目Items | 單位Unit | ||||||
| 系列Series | 8G26系列 | ||||||
| 型號Model | 8G26 | 8G26-2 | 8G26-4 | 8G26-6 | 8G26-8 | ||
| 功率Power | kW/Ps | 2664 | 2352 | 2060 | 1765 | 1470 | |
| 轉速Speed | rpm | 750 | |||||
| 缸徑Bore | mm | 260 | |||||
| 沖程Stroke | mm | 390 | |||||
| 活塞平均速度 Mean piston speed | m/s | 9.75 | |||||
| 平均有效壓力 BMEP | MPa | 2.57 | 2.27 | 1.99 | 1.70 | 1.42 | |
| 燃油(氣)消耗率Fuel consumption | 100%MCR | g/kWh | 183 | 184 | 185 | 185 | 186 |
| 85%MCR | 184 | 185 | 186 | 186 | 187 | ||
| 潤滑油消耗率Lube oil consumption | g/kWh | 0.7 | |||||

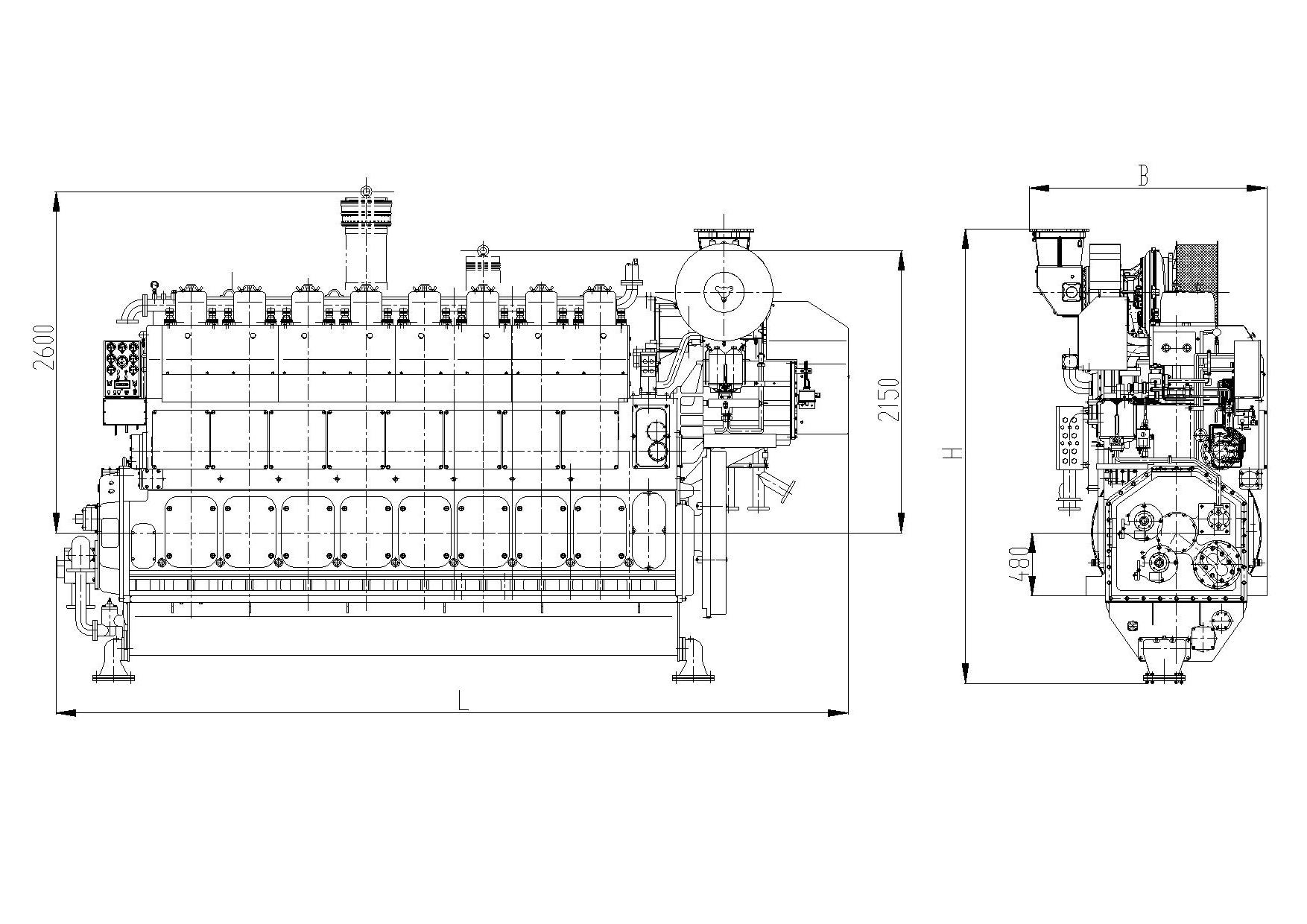

| 外形尺寸 Outline dimension （長×寬×高）(L×B×H) | mm | 6044×1810×3463 | |||||
| 重量 Weight | kg | 31000 | |||||
| 雙主機安裝最小中心距離 | mm | 2200 | |||||
| 證書 | CCS | ||||||
| 燃料類型Fuel type | 380cSt/50℃ HFO | ||||||
| 說明Explantions： | |||||||
| 1、各型號發動機的供貨范圍，按相應技術文件執行。 | |||||||
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | |||||||
| 2、所有機型均可滿足IMO TireⅡ的要求。 | |||||||
| All the model engines can meet IMO Tire Ⅱ requirements. | |||||||
